Home Up SPECIFICATIONS

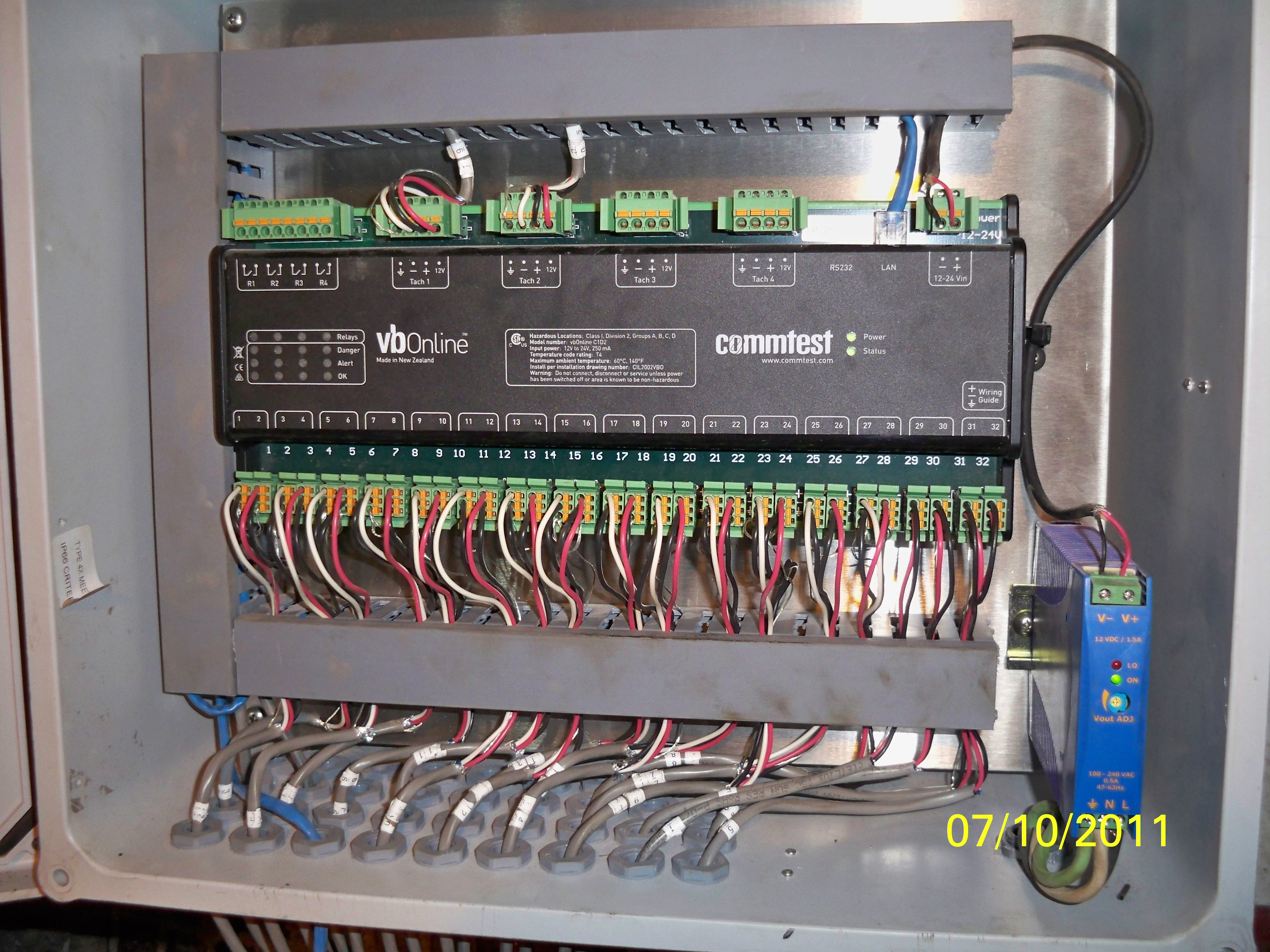

VBOline board

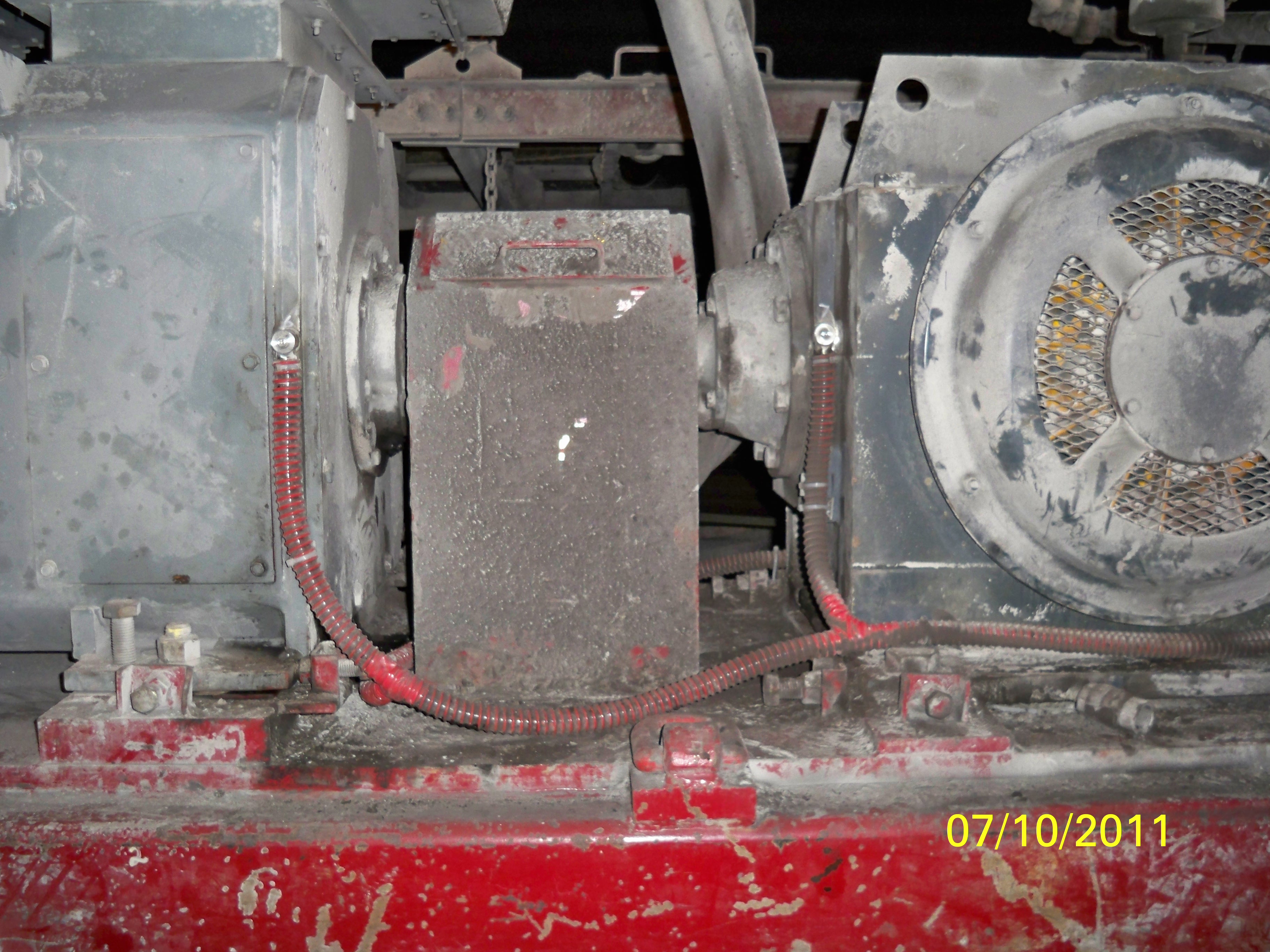

Vibration and Temperature Sensors on Motor and Reducer

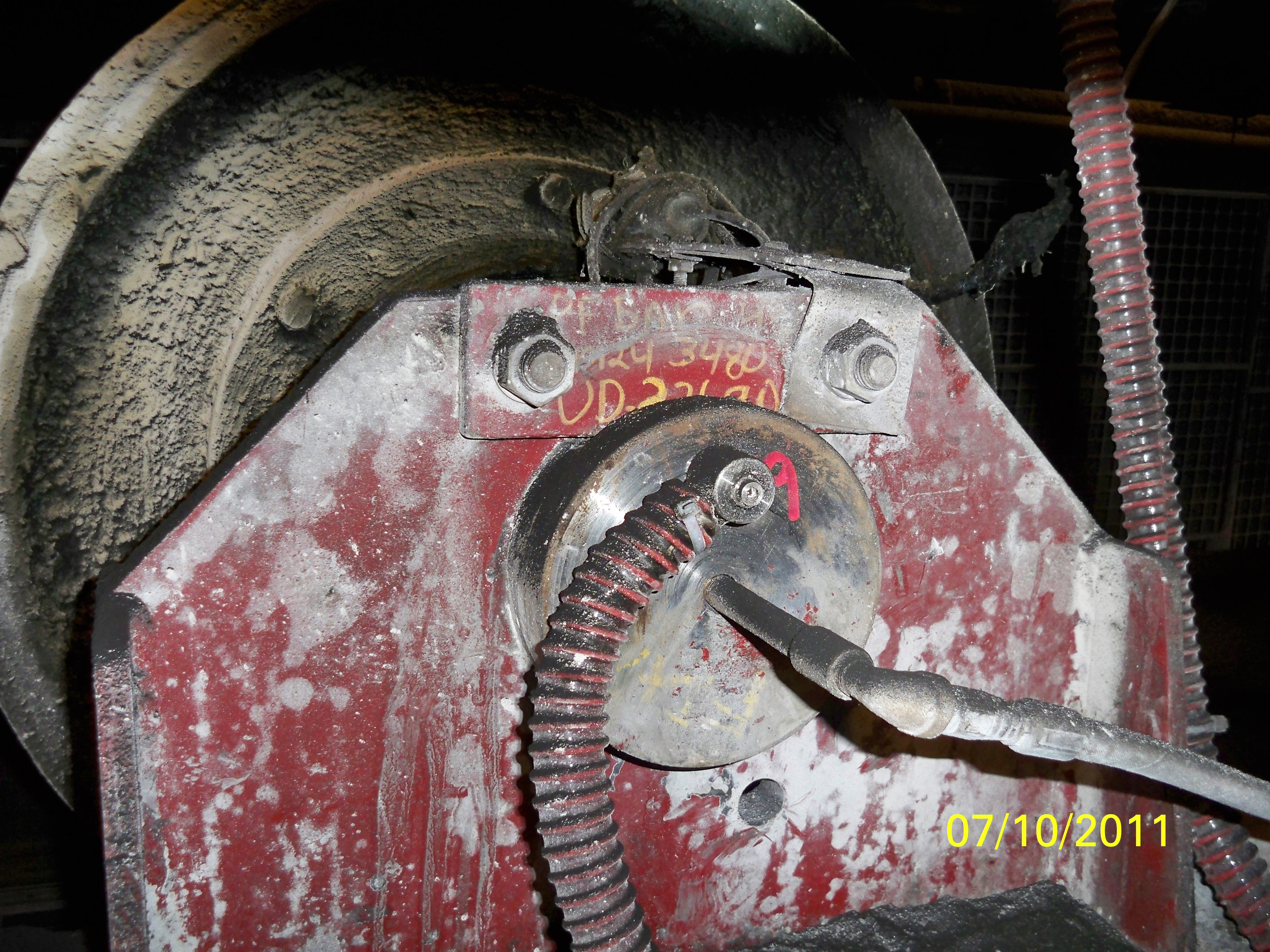

Drive Bearing with Sensor

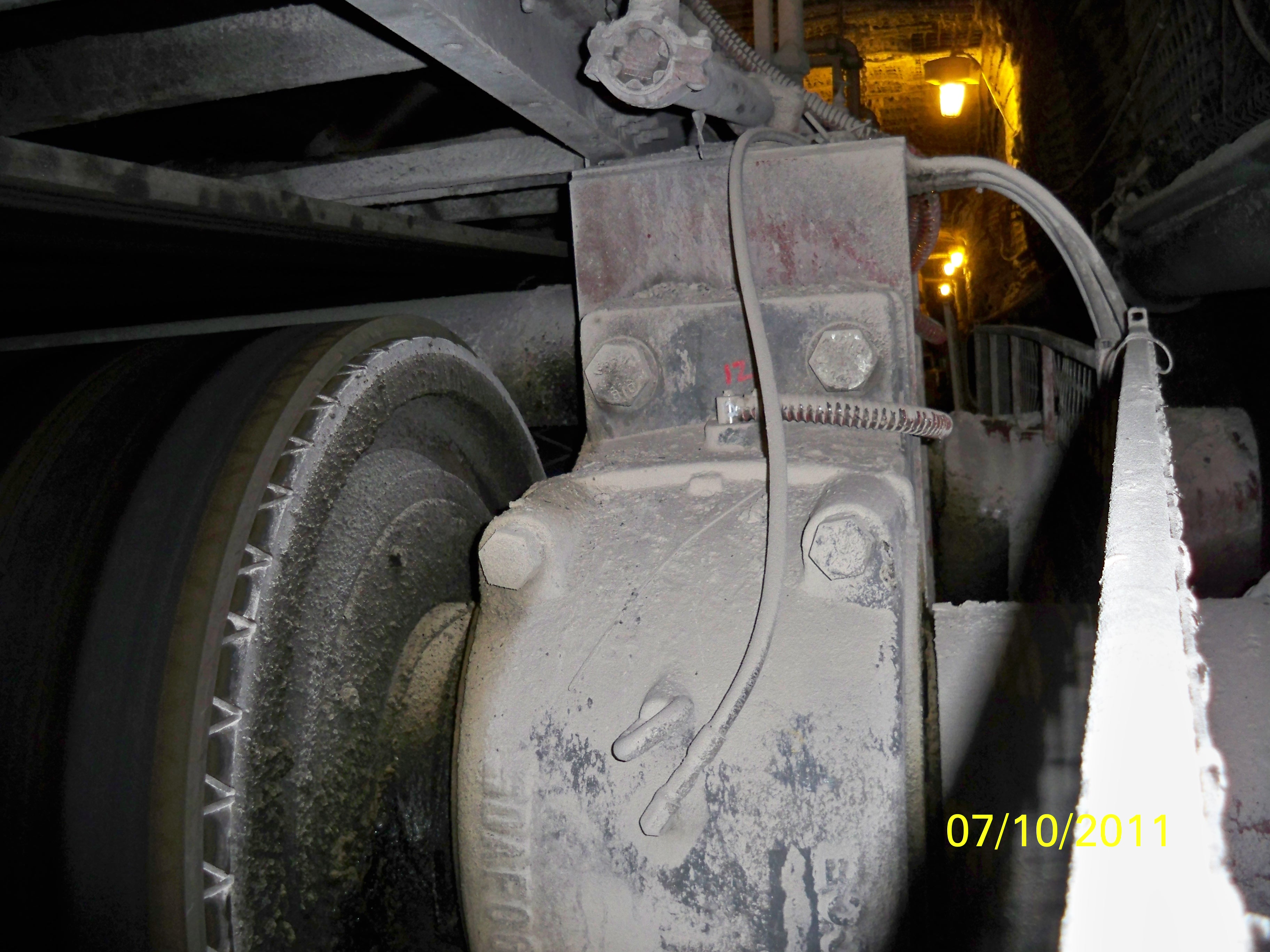

Internal Bearing With Sensor



Benefits of the Continuous Monitoring System:

  1. Continuous data readings (24 x7).

  2. No variance in measurements. (Sensors are permanently attached).

  3. Near real-time alarms.

  4. In addition to vibration it also measures bearing temperatures (motor and driven component) and motor speed.

  5. Minimizes down time which in turn increases productivity.

  6. Quality cost effective Commtest equipment.

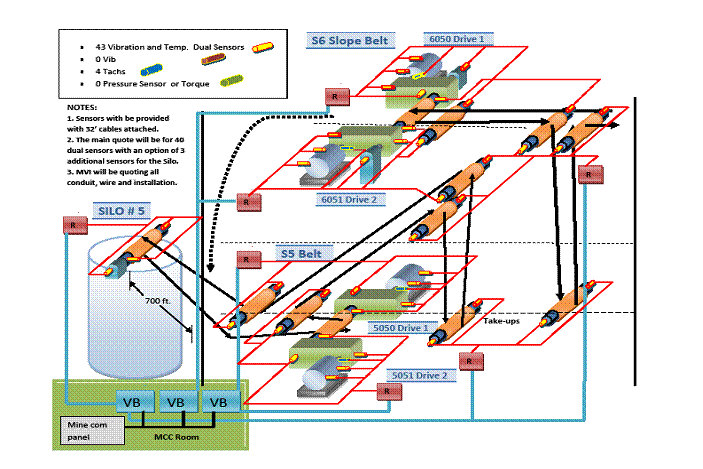

EXAMPLE SURFACE INSTALLATION DIAGRAM

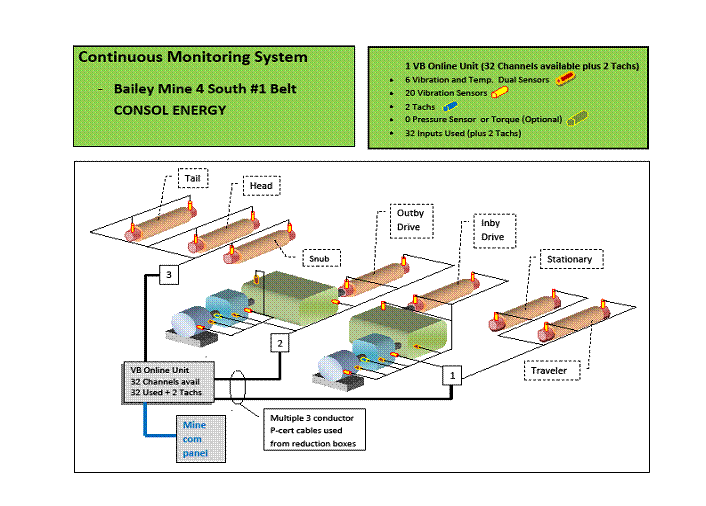

EXAMPLE UNDERGROUND INSTALLATION DIAGRAM













SPECS

























SENSOR DESCRIPTION:

1. Motor 2 locations of vibration and one temperature.

2. Motor speed.

3. Reducer 2 locations of vibration and temperature.

4. Bearings vibration at each bearing.

5. Belt take up pressure.

6. Other Process Variables, pressure, flow, displacement etc.

All readings are available 24x7 from any computer, that has internet access, using a security password. The system also provides graphic trending of overall values, FFT spectrums, bearing overlays, harmonic markers, sideband markers, and the percentage of uptime for each unit.

Please contact me at lmassey@ma.rr.com phone 304-842-6948 or visit the Commtest web site at www.commtest.com for additional information.
